Capillary Hoop Stove & Titanium Alloy Windproof-Stand Craft-53MM

  • Sale
  • Regular price $39.79
Shipping calculated at checkout.

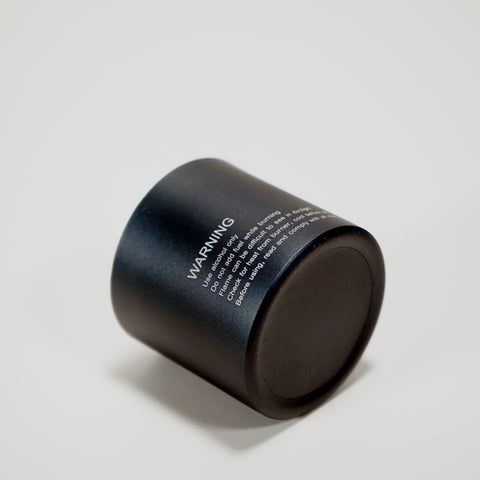

Craft-53MM has been updated to a hard alumina case
We will keep the selling price unchanged for 6 months.

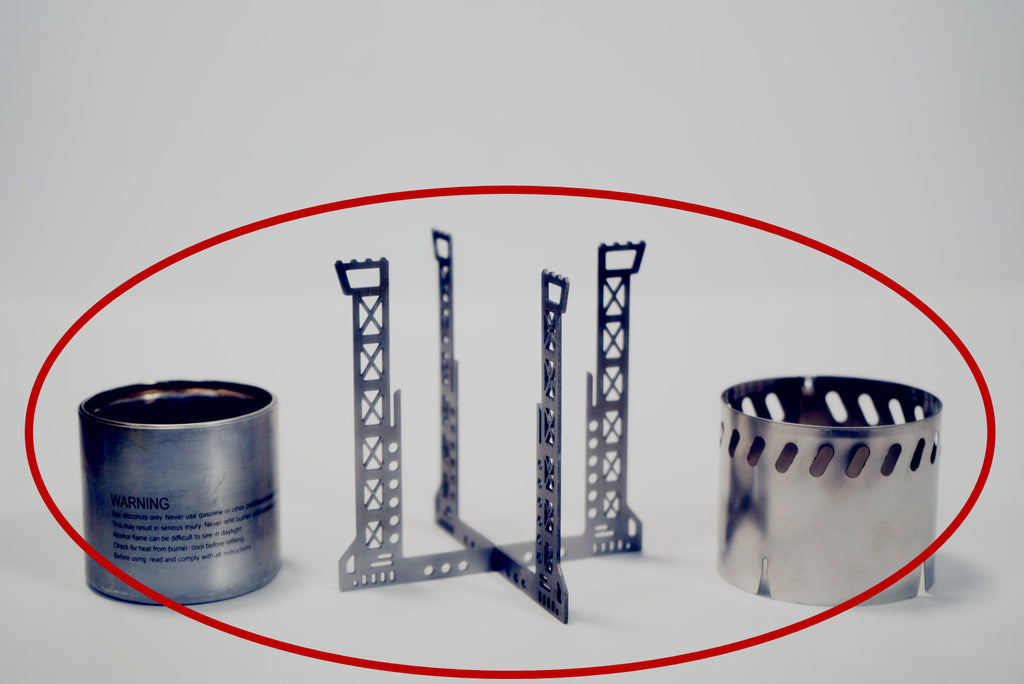

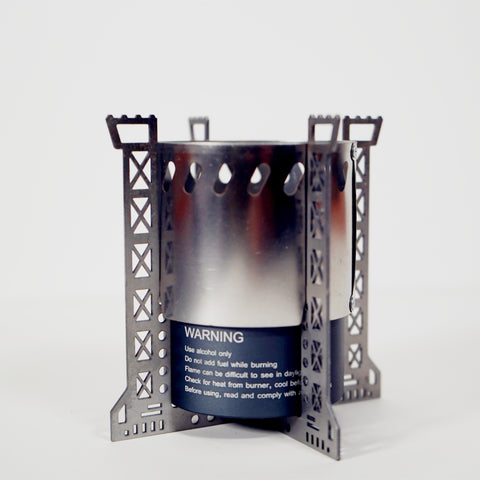

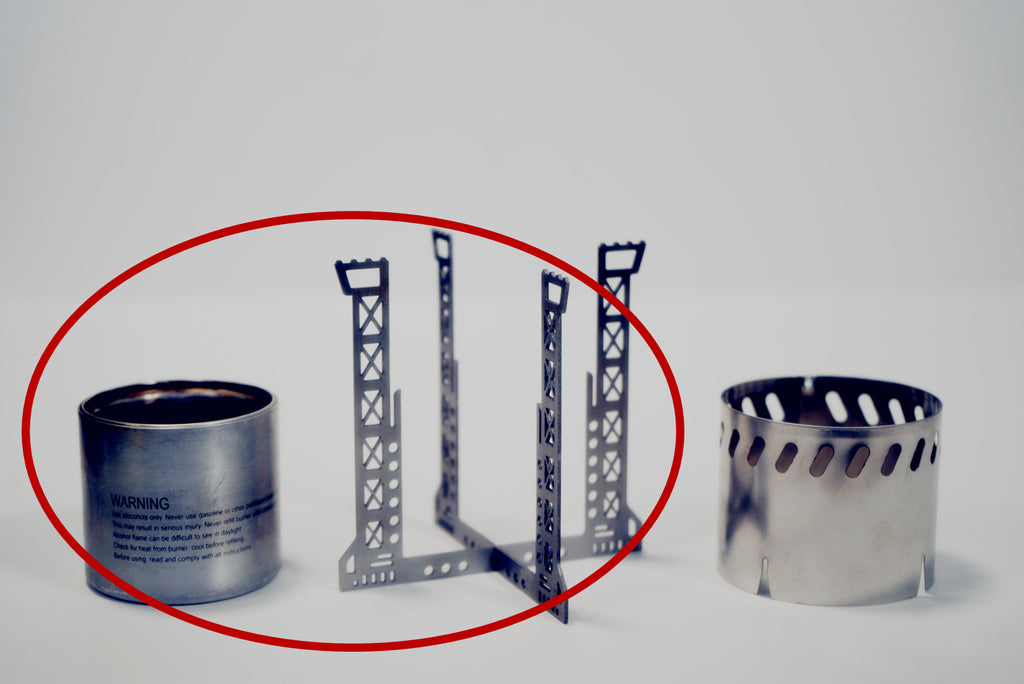

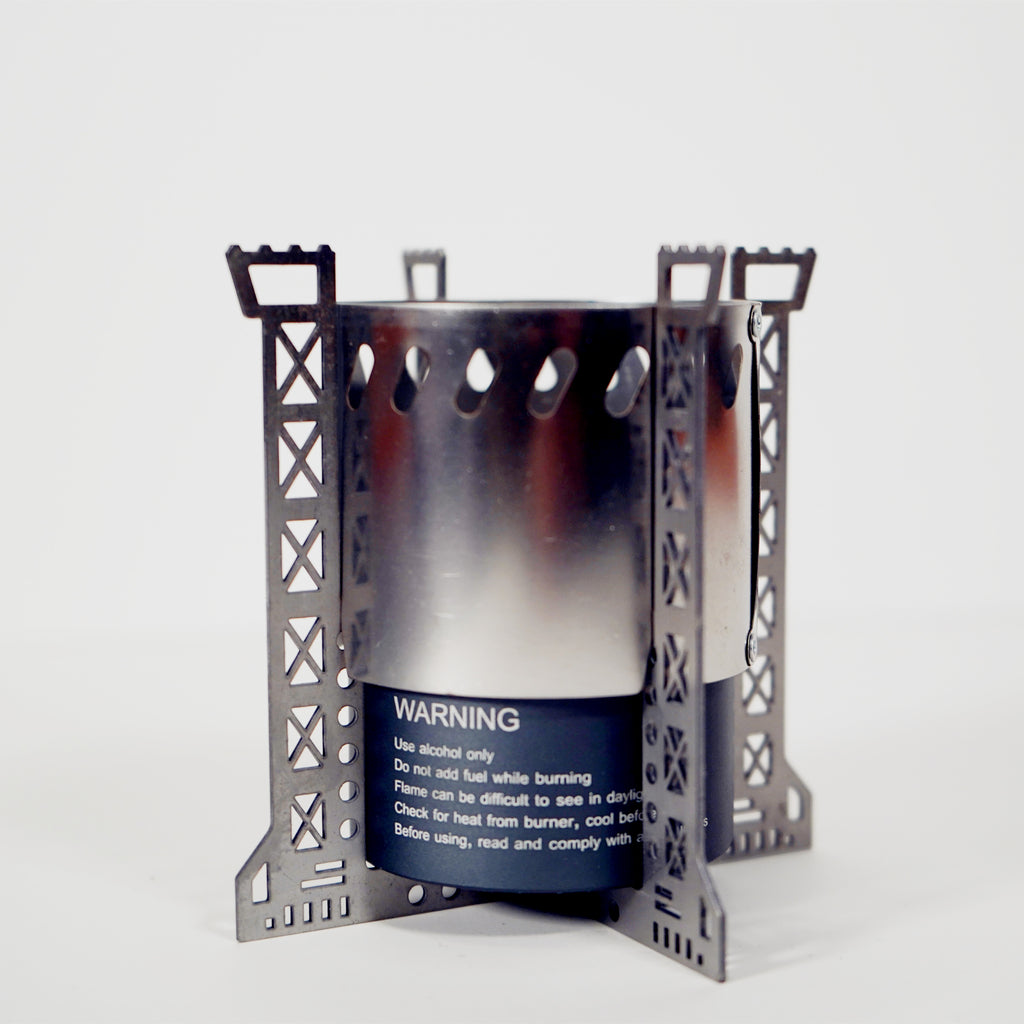

Capillary Hoop Stove & Titanium Alloy Stand

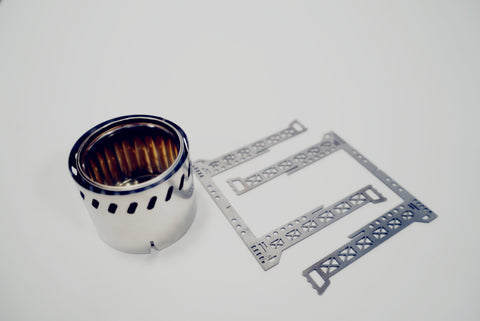

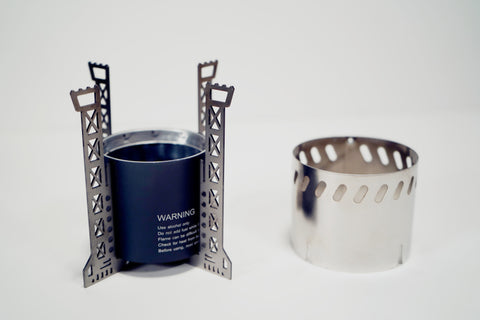

The stand uses a non-uniform hollow out, which makes it have high strength at the lowest weight. The top of the Stand has fine serrations, which can hold your pot firmly.

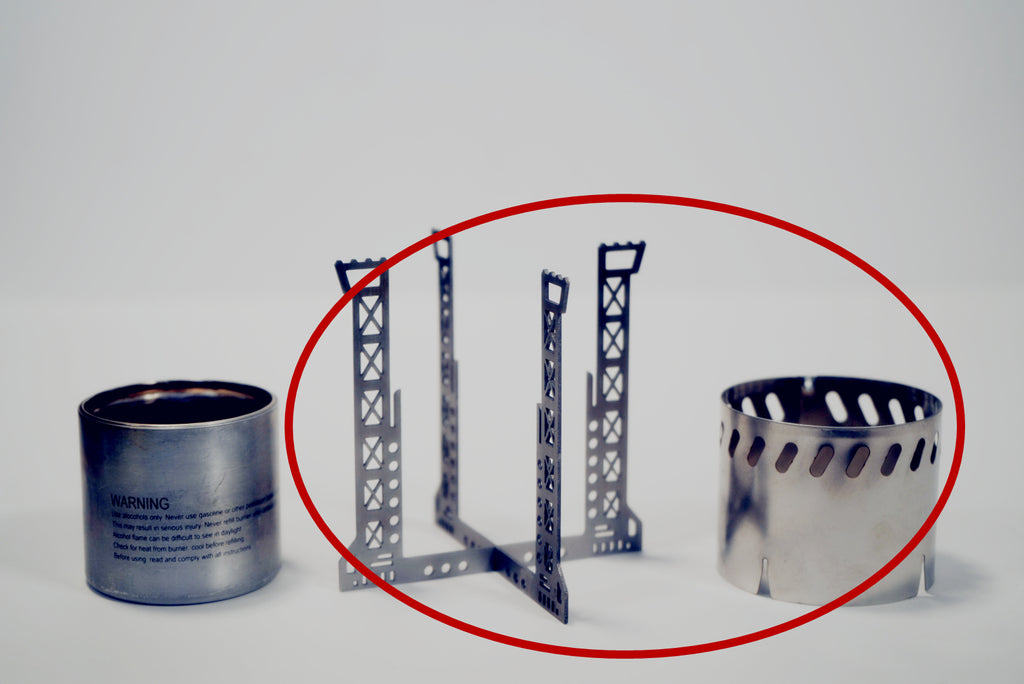

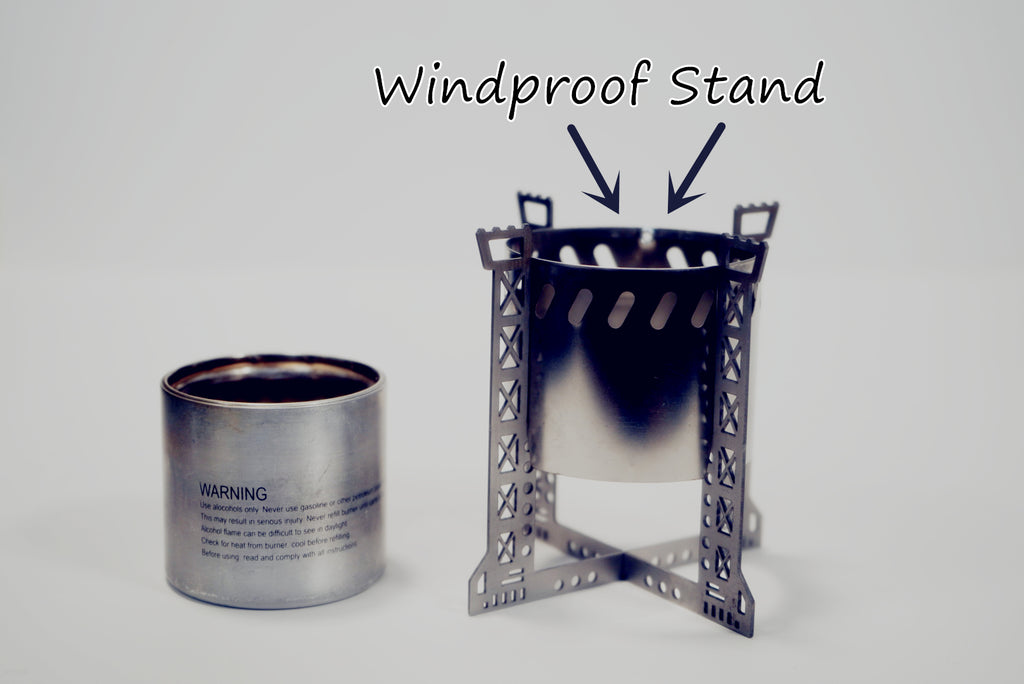

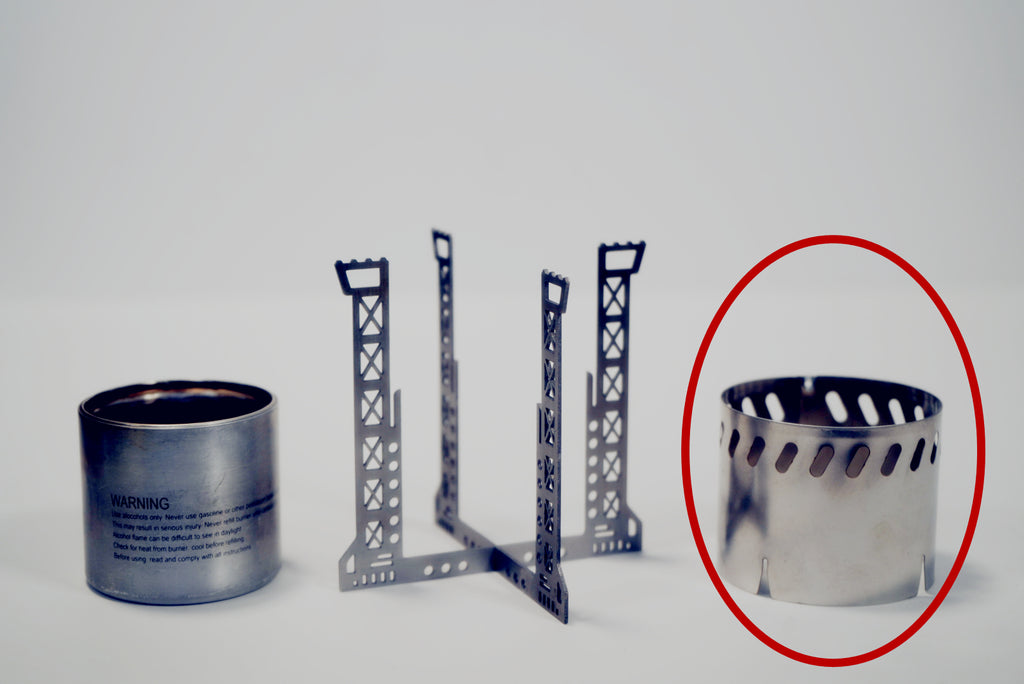

Windproof-Ring

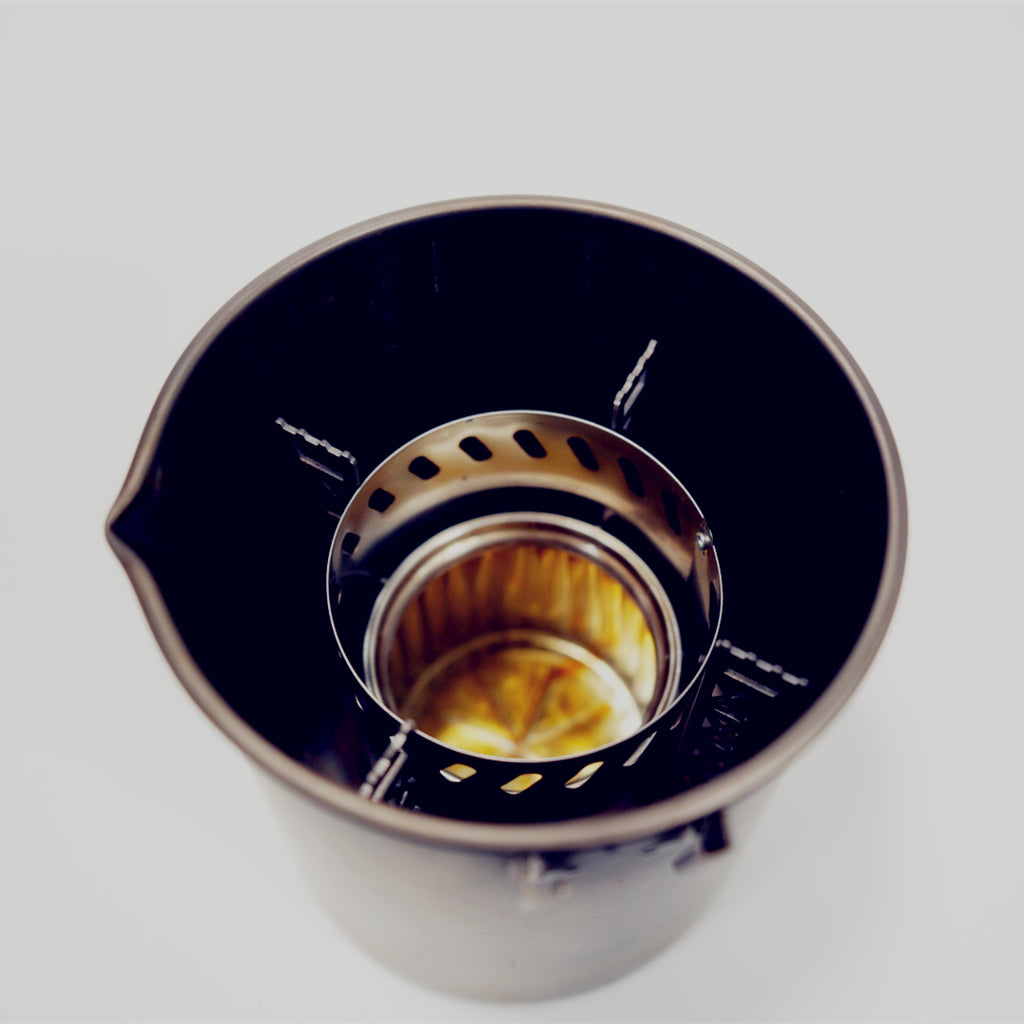

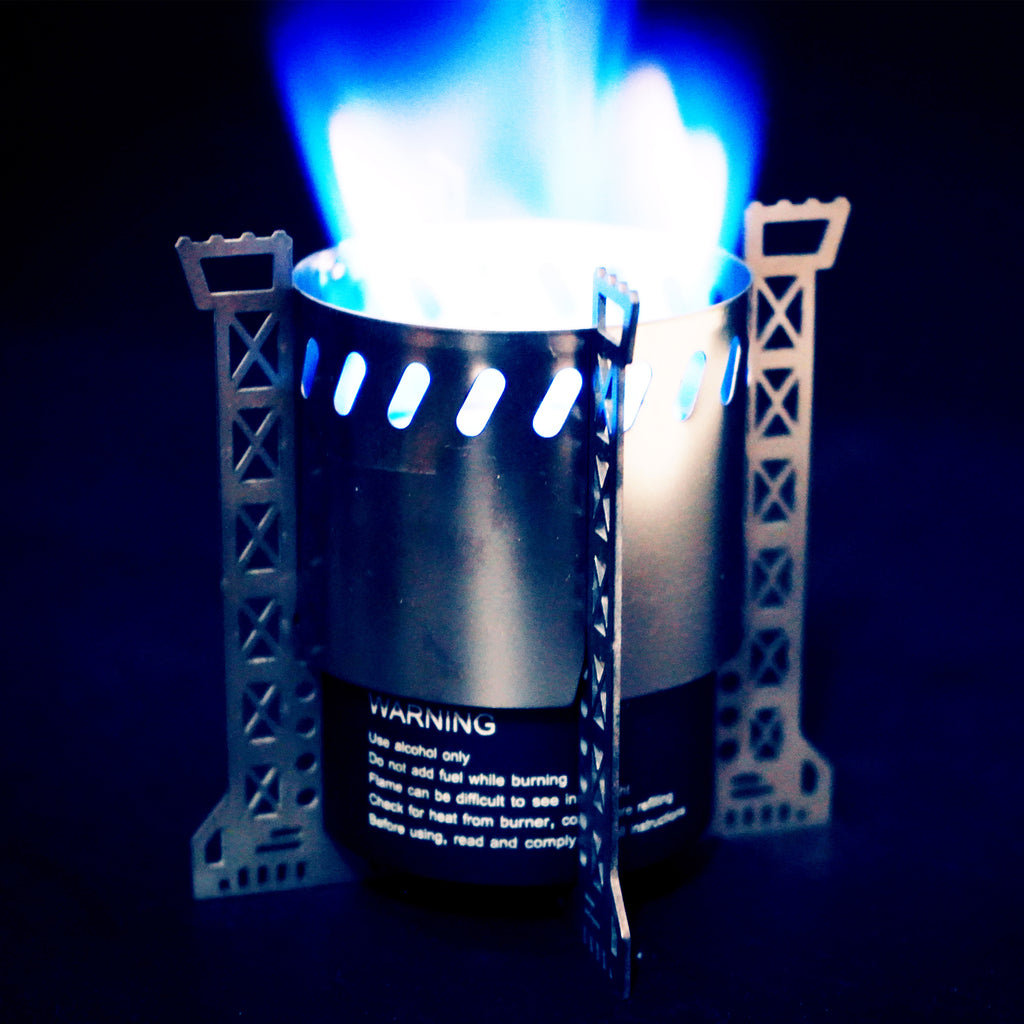

We made the Windproof-Ring, which directs the airflow over the burner in a fixed direction. Windproof-Ring can consider both windproof and oxygen supply in a small space. In most cases, it will replace the huge windshield.
We recommend seeking a resting place or using “the huge windshield“ if the wind is too strong.

If you plan to purchase the Windproof-Ring separately, please make sure your stand is compatible.

We have specialized in windproofing alcohol burners for many years. We will continue.

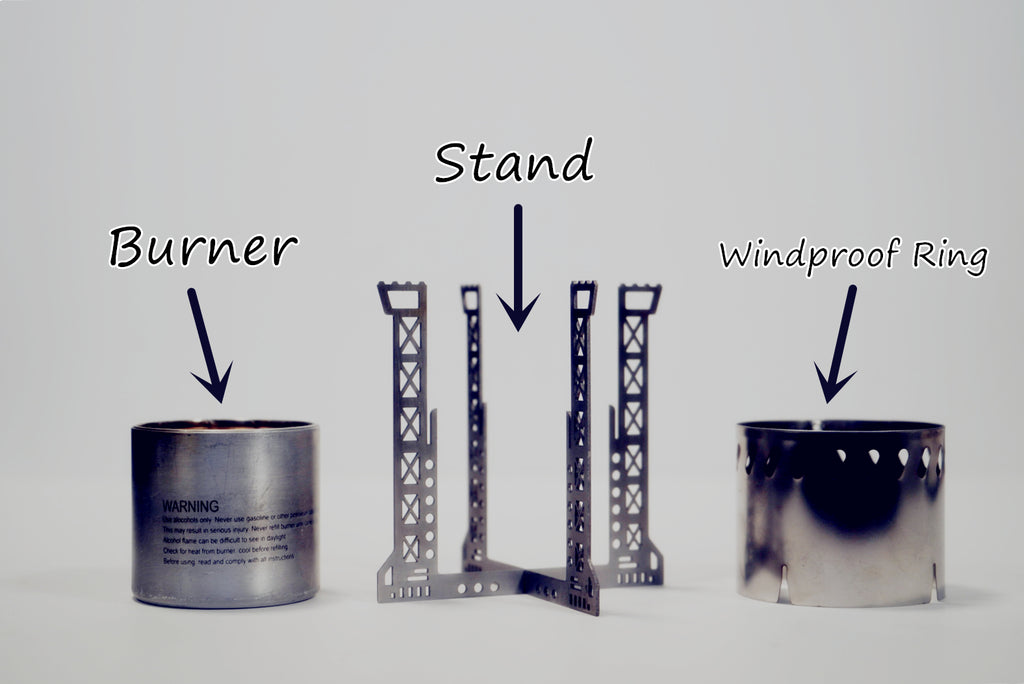

Burner:

Weight:                                    25g
Height:                                    45mm
Diameter:                                53mm
Material:                                  0.8mm AA7075-T6 aluminium alloy
Maximum capacity:                 60ml (30ml recommended)
Bloom time (Ethanol): 12 seconds
Bloom time (Methanol): 10 seconds

Fuel consumption/heating power (reference):
From 500ml of water and 30ml of fuel on the fire, boiled at 5:25 and extinguished at 12:25 (Ethanol)
From 500ml of water and 30ml of fuel on the fire, boiled at 6:06 and extinguished at 11:45 (Methanol)

Titanium Alloy Stand:

Weight:   9g each
Size:       88mm x 90mm
Material: Titanium alloy

Windproof-Ring

Weight:   6g each
Size:       59mm x 48mm
Material: Titanium



Customer Reviews
5.0 Based on 3 Reviews
5 ★
100%
3
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
CP
03/01/2023
Craig P.
Australia Australia

Awesome little stove setup

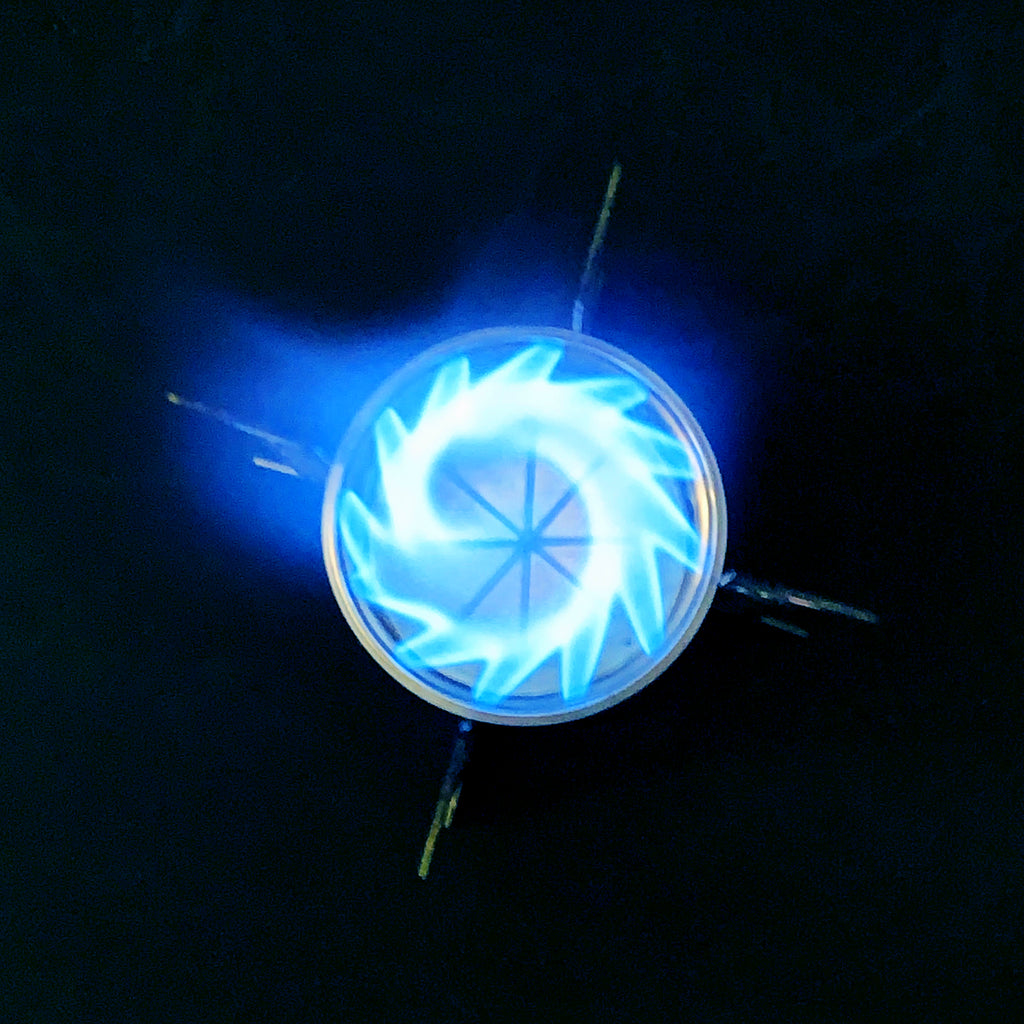

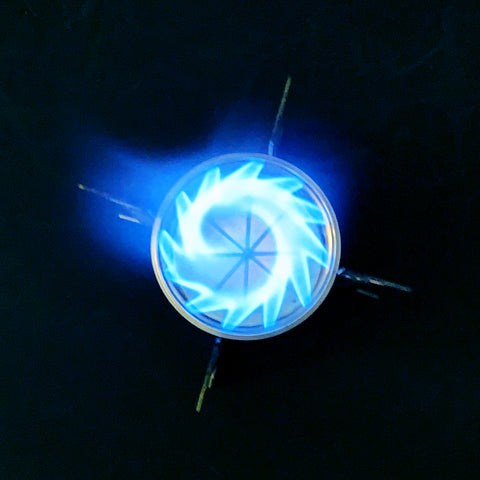

Goshawk really got it right with their little siphon stove. I’ve built and tested most of the diy designs, and bought and tested most of the commercial brands. This is by far the best siphon stove. The aluminium stove is slightly taller than the toaks Ti siphon but only 3g heavier (23g). The flame jet design is far superior to the Ti siphons from toaks, Lixada, tomshoo etc. the burner jets are drilled at an angle that causes the flames to swirl and focus, which makes them less affected by wind. And the burner shield concentrates the flame to give you a much hotter and more efficient burn than all other similar stoves The stand is light and sturdy. Or you can use an X stand such as for the Trangia etc on top of the siphon for even easier setup. It does need an external windscreen for best performance (BBQ tray foil works) The tiny little con of this stove is putting it out after you’ve finished if using the supplied stand and burner screen. You can’t remove the siphon from the stand. You either need to put your mug/billy over it (a toaks 650 will cover it) or make a small lid to drop onto the stove. Overall, a great design, and same weight as a toaks set up, but better performance and much cheaper.

JH
11/14/2022
JEAN H.
United Kingdom United Kingdom

The best alcohol stove I have used!

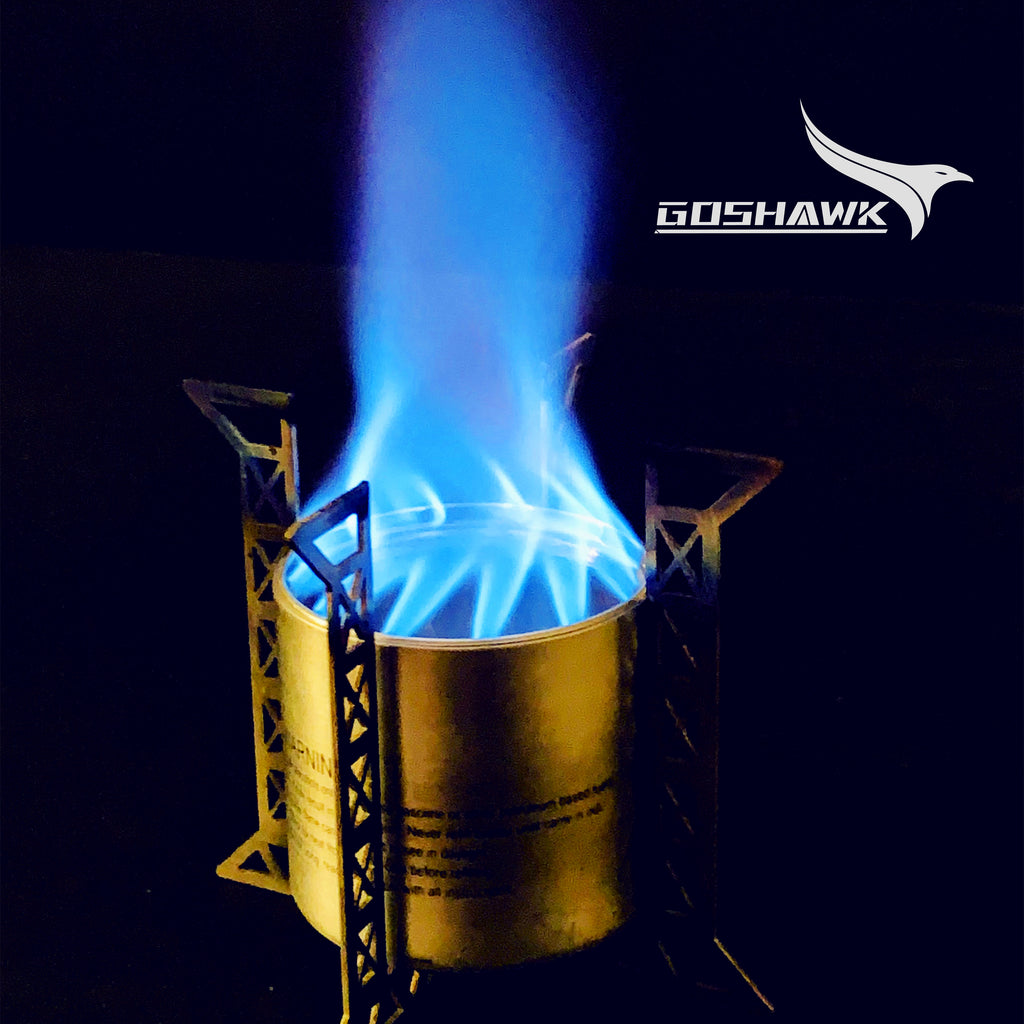

This is by far the best alcohol stove I own and I have quite a few! The flame that this little guy achieves is nothing short of incredible and almost rivals that of a gas burner. What is more the stove, pot stand and windshield weigh little more than a crisp packet! I highly recommend this stove for its performance, weight and cost (shipping and import costs to the UK were really reasonable too) 5 Stars from me!

S
03/04/2021
Someone
Australia Australia

This thing works fantastic.

This thing works fantastic. Lit up quick, seems super efficient as advertised and arrived promptly all the way from Aus to the US, even during the CoVid shipping struggles!
